Seismic-resistant semi-noncombustible insulated panel system
This panel-type product integrates insulation and exterior materials into a single system. By applying an external insulation method,
it reduces the need for interior insulation space, helping to maximize usable indoor area and shorten construction time.
High-performance insulation
Thermal conductivity: 0.020 W/m·K
Reduces thickness by up to 50% compared to conventional insulation materials
Fire Safety
To enhance fire safety in real-use environments, non-combustible surface, backing, and side materials are used to minimize fire risk. In addition, self-extinguishing materials are incorporated to help prevent flame spread.
Seismic Performance
A lightweight structure combined with an interlocking connection system distributes seismic forces across surfaces, helping to reduce and counteract earthquake loads.
Thermal Insulation Performance

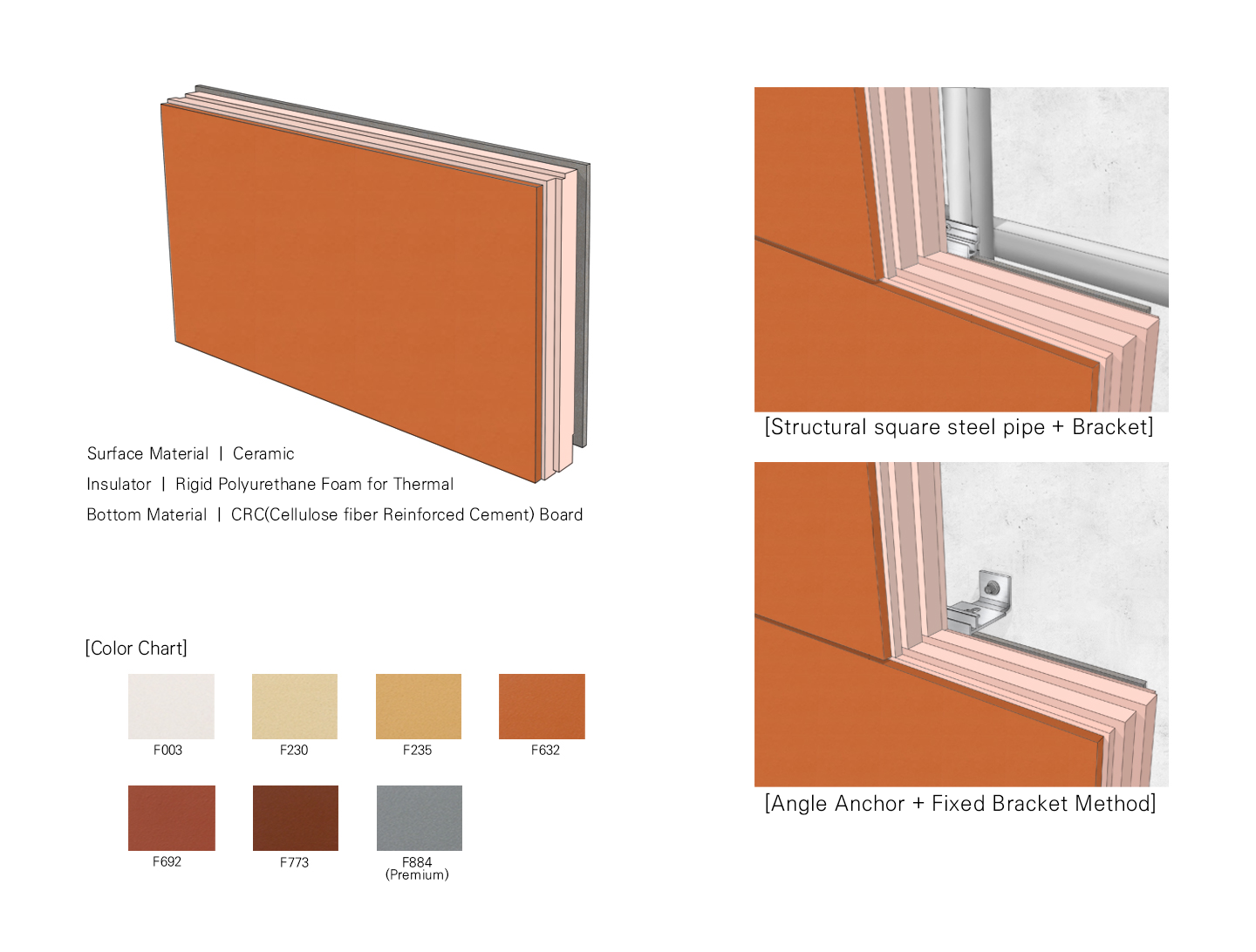

A fixing method using a rear CRC board, combined with a tongue-and-groove structure, minimizes thermal bridging.
Eco-Friendliness
Eligible for additional points in three categories under green building certification systems.
INEX Wall Terra-Cotta Panel

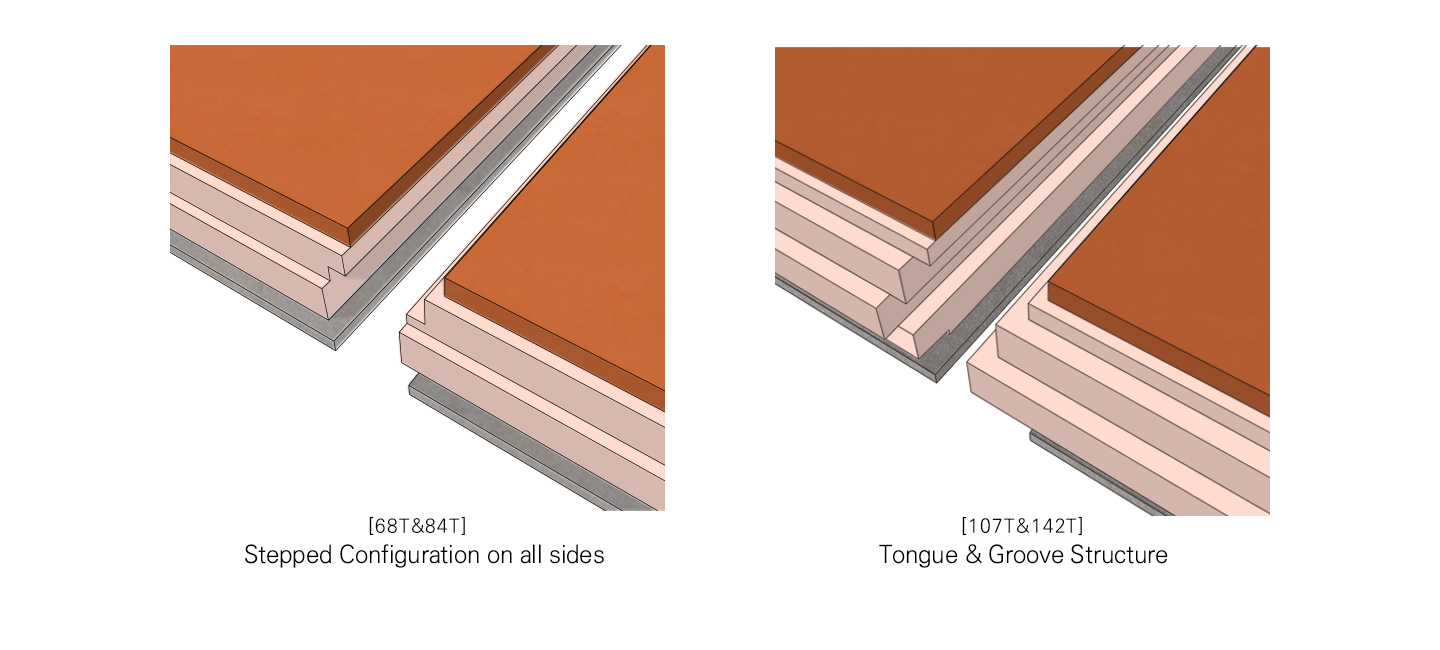

THE CONCEPT
An organic integration between insulation materials is achieved by applying a stepped configuration on all sides
(top, bottom, left, and right) along with a tongue-and-groove (T&G) structure.

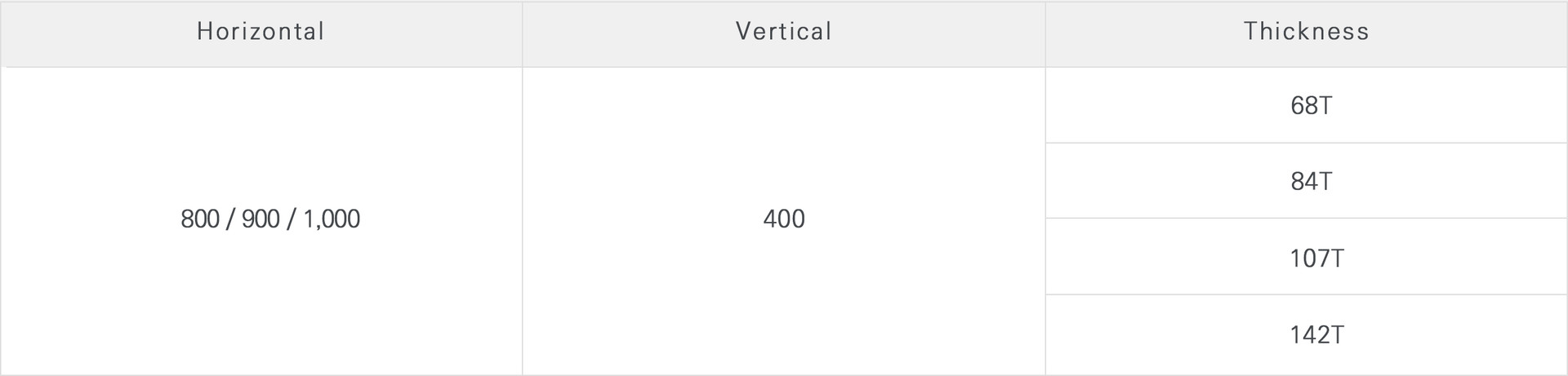

SPECIFICATION
* Apply the thickness reflecting the Thermal transmittance rate by region .
REFERENCE
경기도국민안전체험관
광명노인건강케어센터
구갈 다목적복지회관
천안시 일자리 통합센터
한국교통대학교 공동실험관
구리시 청소년문화의집
울산북구바다도서관
답십리영화미디어아트센터
